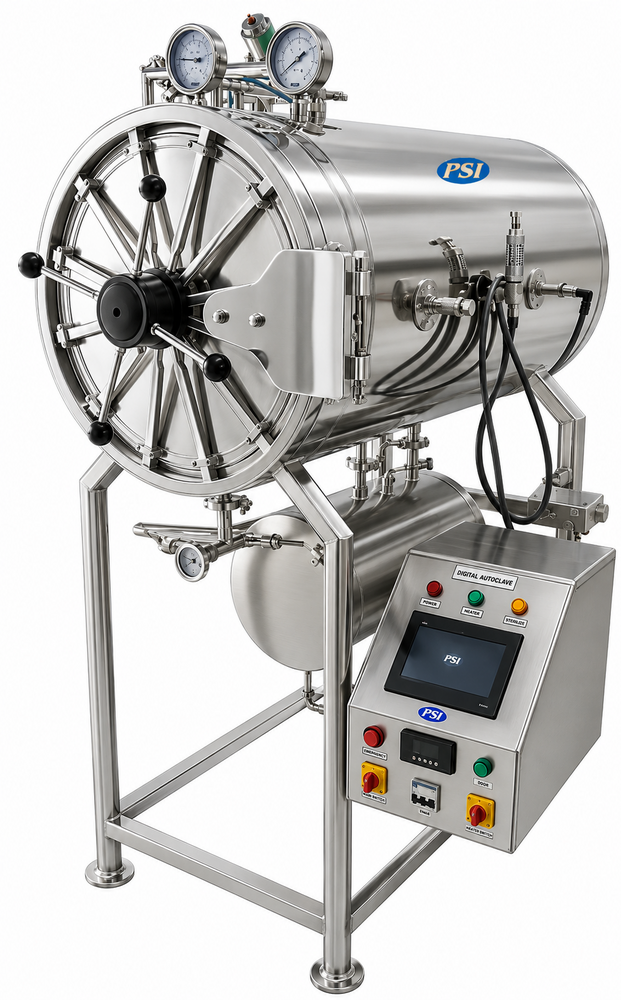

ROUND HORIZONTAL AUTOCLAVE

About ROUND HORIZONTAL AUTOCLAVE

• Jacket - MS Boiler Quality in 06 mm thickness
• Outer Cover / Panel box - MS in 1 mm thickness
• Stand - MS in 12 swg Round pipe.
• Door - SS 304 in 12.5 mm Thickness.
• Locking Rod - M.S. chrome plated in 20 x 20 mm Thickness.

SIELANT FEATURES:

• Working Pressure: 1.2 kgf/cm g for 15 Minute quick & perfect sterilization.
• 2.1 kgf/cm g for 07 Minute quick & perfect sterilization.
• Working Temperature: 121 °C for 15 Minute quick & perfect sterilization. 134 °C for 07 Minute quick & perfect sterilization.
• Hydro test Pressure: Jacket – 4.4kgf/ cm²g Chamber -- 3.3kgf/ cm²g Steam Exhaust from Chamber: 1 minute only
• Sterilization period: 15 to 20 minutes maintaining above pressure and Temperature in chamber.

DETAILED CONTROLS & FITTINGS.

• Multi port / solenoid Valve: To carry out steam to jacket, steam to chamber
• From Jacket, fast/ slow exhaust & vacuum/ drying. (For Radial Arm Door)
• Door : Single door shall be fitted with radial arms & automatic
• Pressure locking device so that the door cannot be opened till pressure is fully exhausted from the chamber.
• Quick Vacuum drying - : This allows the filtered and sterilized air to break the
• Apparatus chamber vacuum which helps in quick drying.
• Accidental Vacuum breaker : A safety device for Jacket against accidental vacuum and
• Jacket air valve for automatic air removal.
• Safety valve: A safety device against excess pressure in jacket/ steam Generator.
• Chamber temperature gauge: Provided a dial type thermometer at front in discharge line to indicate sterilization temperature.
• Plug Screen: A device to prevent large particles from entering chamber.
• Chamber Condensate pipe line: Incorporated with ‘Spirex’ thermostatic steam trap and

Check valve forperfect condensation from chamber to Achieve optimum temperature.

• Pressure gauge: To Indicate steam pressure in Jacket & boiler.
• Compound gauge: To Indicate steam pressure and vacuum in chamber.
• Drain line: Connected without let S.S. funnel junction and water trap Arrangement to avoid air contamination.
• Steam generator: Shall be attached to underneath the Jacket. It shall be

 Fitted with:

·        Â·        Â·        Â·        Â·        Â·

·     ElectricalControl box: Equipped with Heavy duty Air break contactor Heaters ON-OFF andprocess toggle switch indicating lamps.
