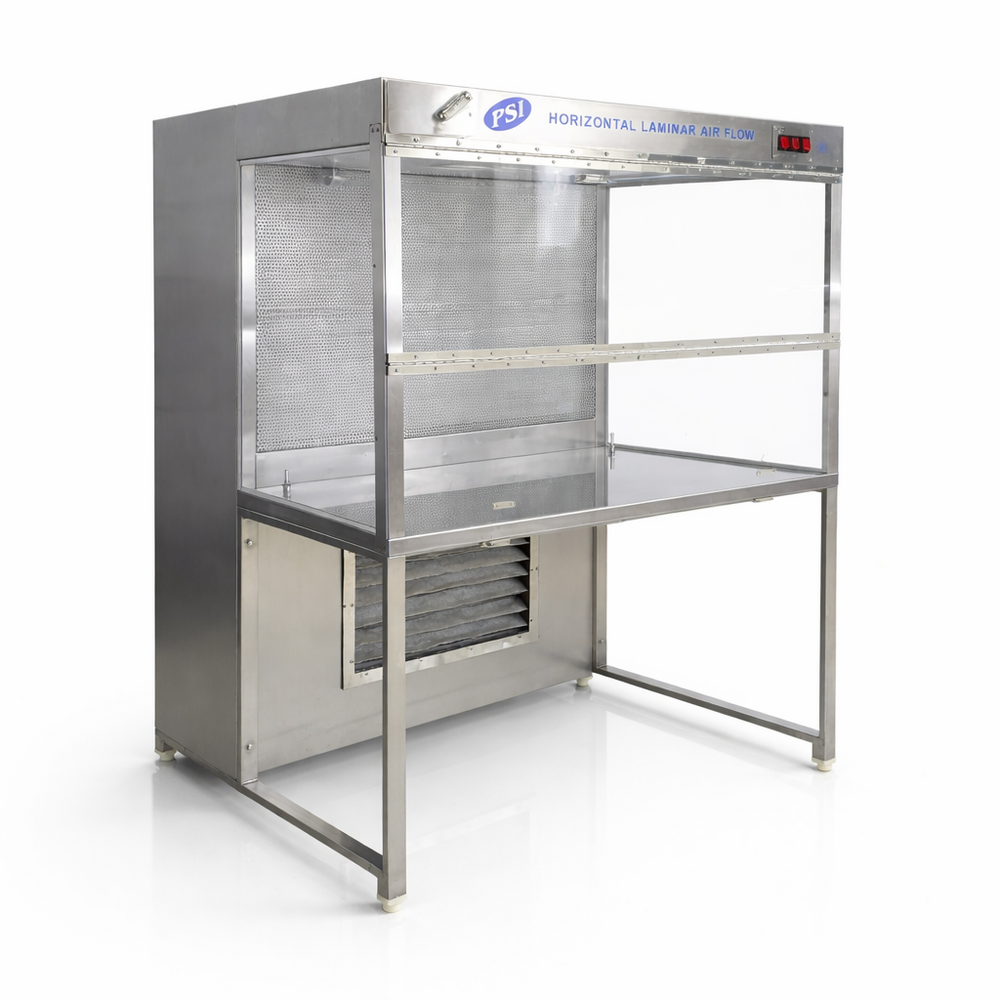

Horizontal Laminar Air Flow (GMP)

Product

PSIHorizontal laminar Airflow - Standard Version

Application

Tissue Culture / Biotechnology / Microbiology etc.

MOC

Galvanized Iron with Powder coated / Stainless Steel - Satin Finish

Pre Filter

PSI Make Pre Filter with Micro Glass Fibre Media of EU - 4 Rating.

Supply HEPA Filter

HEPA Filter efficiency 99.97%  0.3 Micron

Motor Blower Assembly

Induction Motor with Centrifugal Blower Statically and Dynamically balanced with Suitable Rating and Size.

Working Table

S.S. 304 with Due Reinforcement for Better Performance and Stability.

U.V. Light

U.V. Light for Sterilization

Side Panel Accessory No.

Clear Acrylic panel / UV Protected Polycarbonate panel

Pressure Gauge

USA Minihelic Differential Pressure Gauge / PSI Inclined manometer.

Lights

Fluorescent Tube with Milky White Diffuser.

Magnehelic Differential

Pressure Gauge

To measure differential pressure across the supply HEPA filter.

Performance

Air Cleanliness

Class ISO - 5 (as per ISO - 14644-1).

Air Flow Rate

0.45+0.05mps. or 90 FPM+ 20 FPM

Illumination Of Light

Minimum 800 Lux on work table

Noise Level

Less than 67 db on Scale 'A' When Ambient sound Level is not Greater than 57 db on Scale 'A'

Vibration Level

Minimum.
