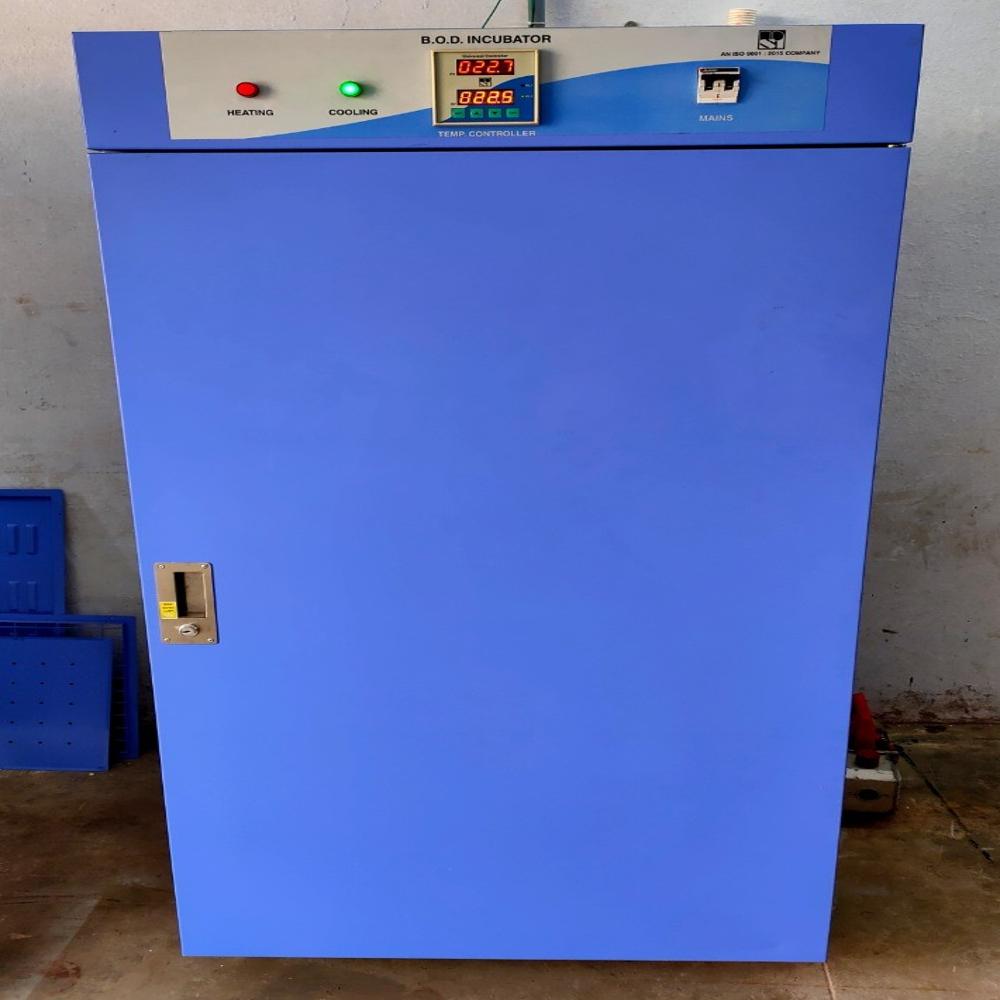

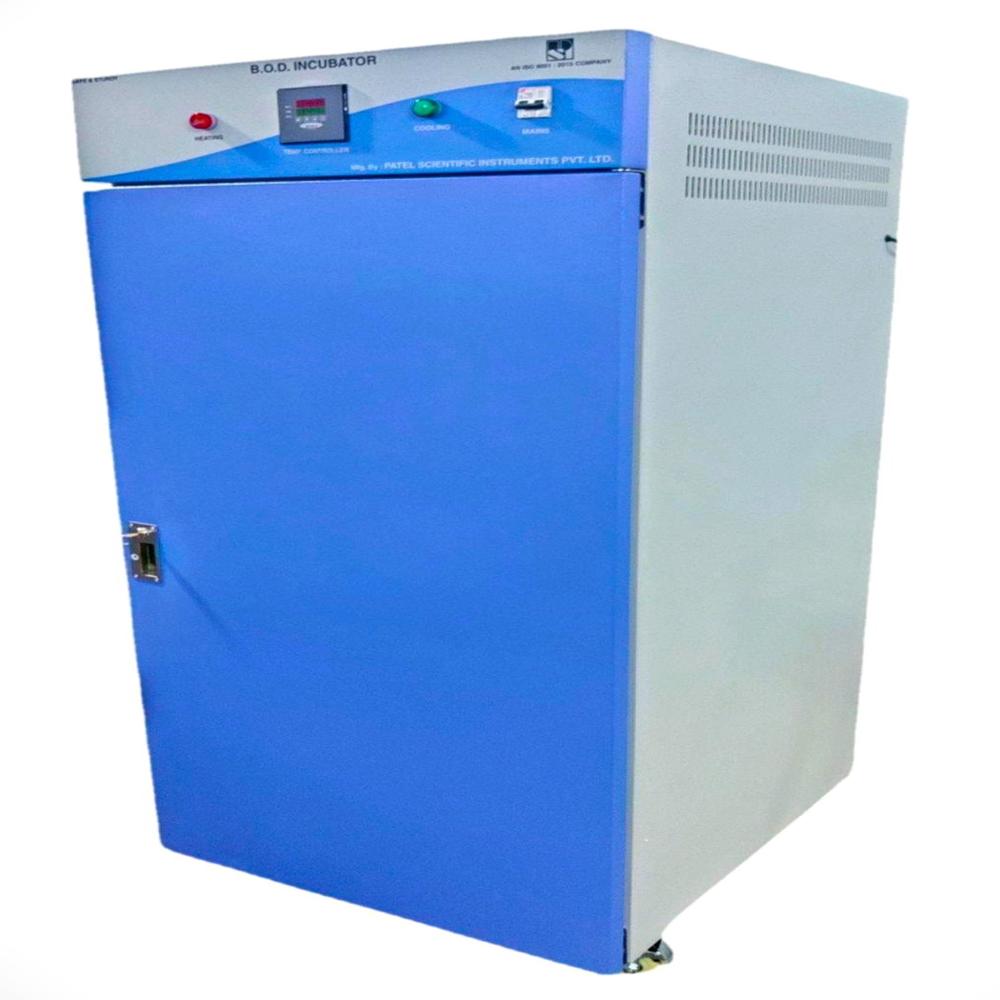

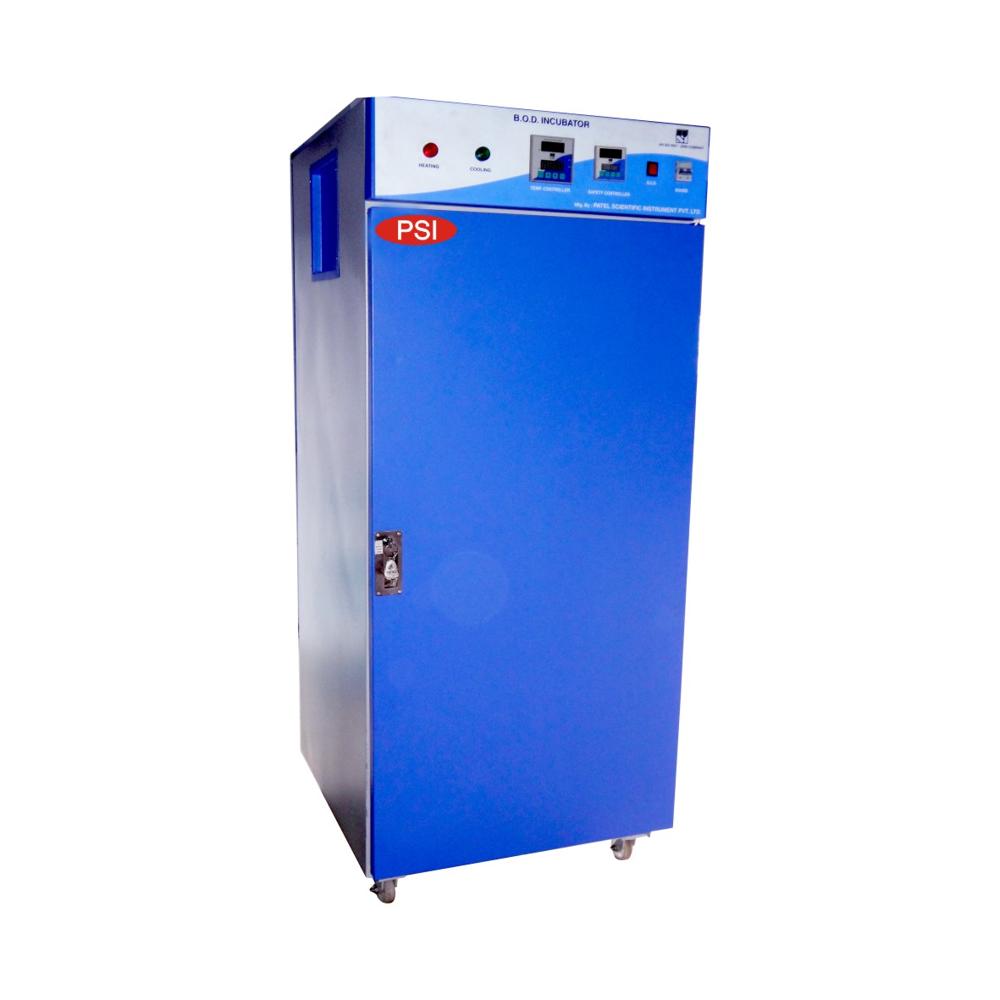

175 L BOD Lab Incubator

About 175 L BOD Lab Incubator

Our extensive range of B.O.D. Incubators has beendesigned especially for biological Oxygen demand determination & otherapplications like general incubators, Serum studies & Enzyme assays test.We can also customize the B.O.D. Incubators to suit the varied requirement of theclients with in stipulated time frame.

Specifications

• Temperature Range 5.0 C to 60.0 C. Accuracy +/- 0.1 C. Uniformity +/- 1.0 C
• Temperature Display: Digital LED 3 digit, Resolution 0.1 deg C
• Heating system: U shaped Nichrome wire heater in SS Sheathing.
• Cooling system: Hermetically sealed CFC free Emerson compressor with R 134a refrigerant.
• Air circulation: Flange Motor with Impeller and blower.
• Interior Illumination for working Area.

Construction

• Double walled, gap between walls filled with PUF Insulation.
• Standard Model: Stainless steel Mirror polished chamber and heavy gauge Powder- coated CRC exterior.
• GMP Model: Stainless steel Mirror polished chamber and exterior of dull finish stainless steel.
• Double door: Inner full Viewing door and outer door insulated with lock and key arrangement.
• 3 Thick CFC Free Puff Insulation.
• Stainless steel Trays. Adjustable Tray Height adjustment.
• Unit Mounted on castor wheels with front lock arrangement.

ControlPanel

• Microprocessor based PID temp. Controller with auto tune facility for precise control of temperature.
• Temp. Sensor: RTD Class A type High Accuracy.

SafetyFeatures

• Over heat temperature with cut-off.
• Electrical overload compressor cut-off.
• Time delay for compressor switch on.
• Electrical short circuit breaker.

Utilities

• Room temperature around machine preferably at 25 degree C.
• Stabilized input voltage of 230V Ac, 50 Hz, and 15 Amps.
• Water drains line with Nozzle to be provided at floor level.
