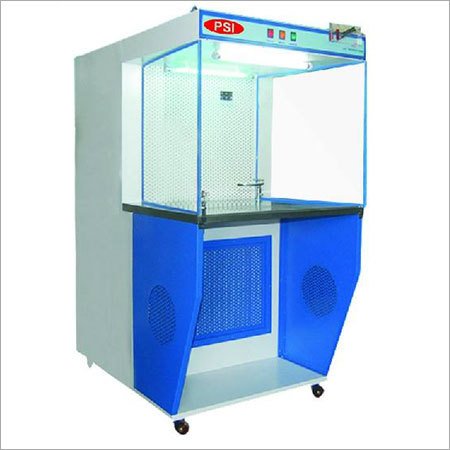

Vertical Laminar Air Flow
- Minimum Order Quantity
- 1
- Unit of Measure
- Piece/Pieces
We have to require comprehensive range of high performance vertical laminar flow clean air cabinets. Modular construction, combining aesthetic appeal with functional utility and efficiency. These are designed to meet the filtration, illumination, Noise & Vibration requirements and US Federal Standard 209 B (BS 5295) Providing air to meet class 100 (class I) conditions, to the extent applicable. It is Ideal for microbiological manipulations. work with bioassays sterility testing & research work. vial filling 8. bunging operation in parenteral units 8. for general dry- processing work in semiconductor industry etc. Provides a comfortable 'sit down' working position for the operators.
| Floor mounted version suitable when floor space is available | |
| Product | PSI Horizontal laminar airflow- standard version |
| Application | Tissue Culture/ Biotechnology/ microbiology etc |
| MOC | M.S with powder coated/ stainless steel matt finish |
| Pre filter | PSI make pre filter with mirco glass fiber media of 5 micron |
| Supply HEPA Filter | HEPA Filter efficiency 99.97% 0.3 micron |
| Motor blower assembly | Induction motor with centrifugal blower statically and dynamically balanced with suitable rating anf size |
| Working table | S.S. 304 with Due reinforcement for better performance and stability |
| U.V Light | U.V. Light for sterilization |
| Side panel accessory No | Clear acrylic panel/ UV Protected pilycarbonate panel |
| Door | Easy sliding door for weight lifting |
| Pressure Gauge | USA make minihelic differential pressure gauge/ PSI Inclined manometer |
| Lights | Fluorescent tube with milky white diffuse. |
Performance
| Air clean lines | Class ISO – 5 (as per ISO- 14644-1). |
| Air flow rate | 0.45 ± 0.05 mps. Or 90 FPM ± 10 FPM |
| Illumination of light | Minimum 800 lux on work table |
| Noise level | Less than 67 db on scale 'A' When ambient sound level is not greater than 57 db on scale 'A' |
| Vibration level | Minimum |
- Payment Terms
- Others, Cheque, Cash Against Delivery (CAD)
- Main Domestic Market
- Madhya Pradesh, Maharashtra, Rajasthan, Gujarat
