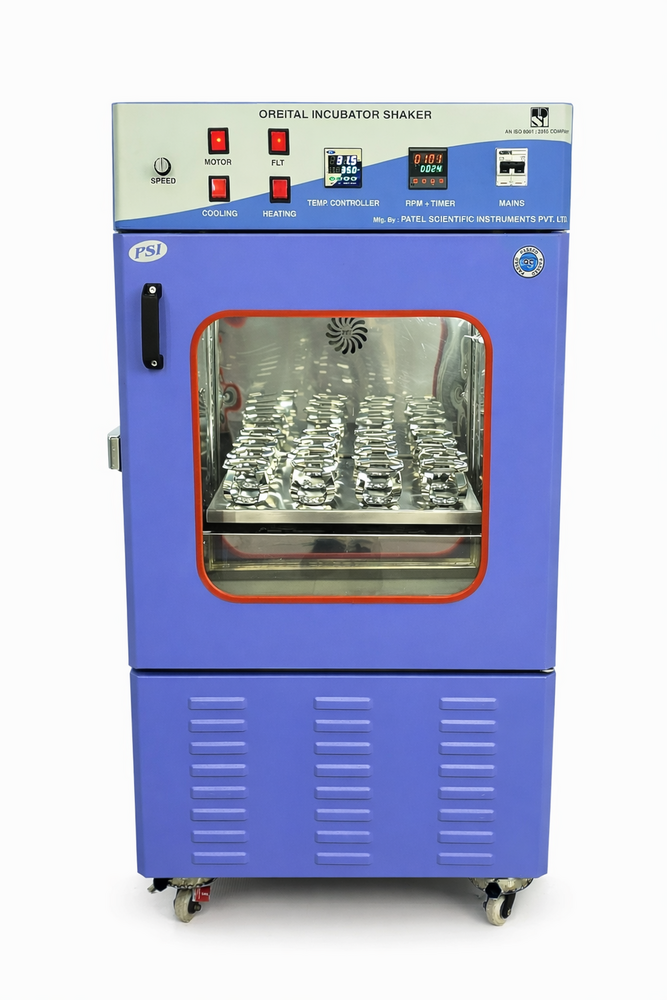

Orbital Shaking Incubator

Orbital Shaking Incubator
Orbital Shaking Incubator
Send Inquiry
Product Code : 06
Product Description

Backed by our adroit professionals, we are becoming as one of the reliable manufacturers and suppliers of Orbital Shaking Incubator. It is designed having rotary motor which allows its steel made tray to rotate in circular motion at low speed ranging from 25 to 500 rpm. This incubator finds its application for fermentation studies, enzyme reactions, growth studies, aging tests, and tissue culture purpose. Offered Orbital Shaking Incubator is made using powder coated steel alloy assuring its great strength and rust proof nature.

Features:



  • No vibrations while operating

  • Positive air flow throughout the chamber

  • Equipped brushless induction motor with VFD





Our company also takes pride in providing a wide range of orbital shaker .These are designed fabricated to suit various is standard of orbital shaking motion applicable in growing field of medical agricultural industrial Research Laboratories Others.

Technical Specifications:

  • Double walled inner chamber made of S.S.304 & outer M. S. Powder coated.
  • PUF insulation between two walled.
  • Heavy angle frame structure from all sides.
  • Shaking assembly electric pulley mechanism.
  • Platform adjustable stainless steel platform.
  • Flask Holder: Spring type clamp arrangement with easy interchangeability facility.
  • Heavy duty Motor (DC Motor).
  • RPM 50 to 250 RPM controlled by Regulator.
  • Stroke 25 to 30 mm Stroke displacement.
  • Temp. Controlled by digital Temp. Controller cum indicator with accuracy of ± 0.5 °C.
  • Temp. Range 10 °C to 60 °C in cooling Model 8. in heating Model 5 °C above ambient to 60 °C.
  • Cooling by CFC free hermetically sealed compressor.
  • Heating by 'U' Type tubular S. S. Heater.
  • Illumination light to view.
  • RPM Indicator in digital Display.
  • Digital timer with Audio visual Alarm.
Size available for orbital Incubator:

No.of Flask X size in ML Rating Watts Heating Rate Cooling Rate
9 x 250 ml 500 60000/- 84000/-
16 x 250 ml 1000 69000/- 105000/-
25 x 250 ml 1500 85000/- 125000/-
9 x 500 ml 500 65000/- 90000/-
16 x 500 ml 1000 78000/- 105000/-
25 x 500 ml 1500 98000/- 152000/-
