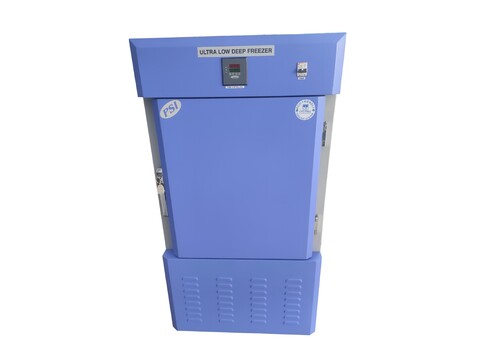

Ultra Low Chambers

Ultra Low Chambers
Ultra Low Chambers
Product Code : 23
Trade Information
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Piece/Pieces
  • Payment Terms
  • Cash on Delivery (COD), Cash in Advance (CID)
  • Sample Available
  • Yes
  • Sample Policy
  • If order is confirmed we will reimburse the sample cost
  • Packaging Details
  • Plastic packing and wooden packing.
  • Main Export Market(s)
  • Asia
  • Main Domestic Market
  • Central India, North India, East India
  • Certifications
  • ISO 9001 : 2015
Product Description

                                                                  Ultra Low Chambers

Our renowned company is considered amongst the prominent manufacturers and suppliers of best quality Ultra Low Chambers that are extensively used in research institutes, pharmaceutical industry and laboratories for variegated uses. These chambers are provided with special compressors in order to keep the temperature low. Our offered range is made available with rounded corners that facilitate easy cleaning. The Ultra Low Chambers provided by us are manufactured by making use of pristine quality  component that is sourced from honest and quality oriented market vendors.
Features:

  • Excellent functionality
  • Corrosion resistance body
  • Superior performance
  • Robust construction

Our Ultra Low Chambers are examined on the following parameters before final dispatch:

  • Temperature test of each compartment

  • Insulated test

  • Pressure test of refrigeration system

  • overloading & Overheating tests with difference voltage and cycles

The Microprocessor Controllers

  • Multi-Position key switch on, off and set temperature with membrane keyboard control panel
  • Visual and audible Alarm System such as low-Battery alarm, Condenser temp alarm, power failure alarm high-low temperature alarm
  • Digital display set and present temperature
  • Standard Dry contacts

Refrigeration System

  • Single stage cooling system for -45oC
  • Cascade stage cooling system for -90oC
  • Hermetically sealed cooling system
  • Cold air is protected by the insulated inner plastic doors
  • Efficient evaporator with maximum contact to chamber watts for fast cooling down
  • Thickness 130mm, high density polyurethane foamed insulation
  • CFC Free refrigerants

Technical Structure

  • The reliable and durable Bristol compressors and quite remaining fans with low noise level around 50 dBA
  • Heavy-duty casters with built-in adjustable stands
  • Stainless steel Chamber with rounded corners for easy cleaning
  • Built-in 3 access port for checking inside
  • Heated door seals by hot gas defrosting system prevents ice to build up
  • Automatic voltage compensator protects electric ports form the damages by electric Fluctuation
  • Start relays and capacitors minimize electrical load and reduce the energy consumption
  • Optional Co2
  • Dual layered air insulated inner doors retain cold air in chamber

Quality Control

  • Temperature test of each compartment
  • Insulated test
  • Pressure test of refrigeration system
  • Overloading & Overheating tests with difference voltage and cycles
