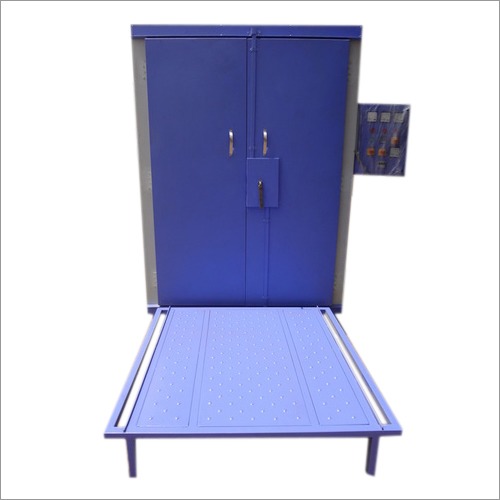

Stainless Steel Tray Dryer

About Stainless Steel Tray Dryer

Our company has specialized in the sphere of fabricating a wide range of Memmert Tray Dryer that is sturdy in construction & durable. We used high grade raw materials that is procured from the renowned vendors of the country for the mgf. process for ensuring high efficiency of the memmert Tray Dryers. Available in different sizes, we can also customize this Tray Dryer as per the requirement of Clients.

Specifications of Stainless Steel Tray  Dryer:

1) Triple walled Unit.

2) Inner chamber made of S.S.

3) Study Trolley with Caster Wheel

4) Outer chamber of Mild Steel with Powder coating.

5) Gap Between the two walls filled with glass wool insulation to avoid heat loses of 65 mm

6) Heating element Are Made of high grade chrome plated nichrome wire.

7) Heaters are placed ate the Bottom & Both Side of the inner chamber

8) Enable with thermostat control the Temperature Temp. Range 40C to 150C Accuracy 0.5 C

9) Air Ventilation is placed on top of both sides to remove heat gases and fumes.

10) Control Switch & pilot lamps are fitted on front panel

11) Micro Processor Auto Tune PID Controller

12) S.S. Wire mesh Jali

13) Air Circulation Motorized Blower

Specification

Accuracy	+-0.5 deg C
Max Temperature	40 to 150 deg C
Color	Blue
Surface Finish	Powder Coating
Outer Chamber	Mild Steel with Powder Coating.
Inner Material	Stainless Steel



Efficient and Uniform Drying

The tray dryer leverages forced hot air circulation, achieving consistent temperature distribution across the chamber. This design is ideal for processing heat-sensitive materials, ensuring gentle yet thorough drying. Adjustable air inlets and outlets optimize airflow, minimizing drying times while preserving product integrity.


Versatile Capacity and Customization

Available in multiple tray capacities (12, 24, 48, 96, or custom), the dryer accommodates a wide range of batch sizes for different industries. With flexible options for door types, finishes, and fuel sources, it can be tailored to meet specific operational requirements. Power consumption and dimensions are model-dependent, allowing efficient integration into existing setups.


Advanced Safety and Construction

Built from high-grade stainless steel (SS 304/316), the tray dryer features double-walled, gasket-fitted doors and robust insulation for operational safety and energy savings. Integrated safety interlocks and over-temperature controls protect both operators and products, while the low-noise (<65 dB) design ensures a better working environment.
