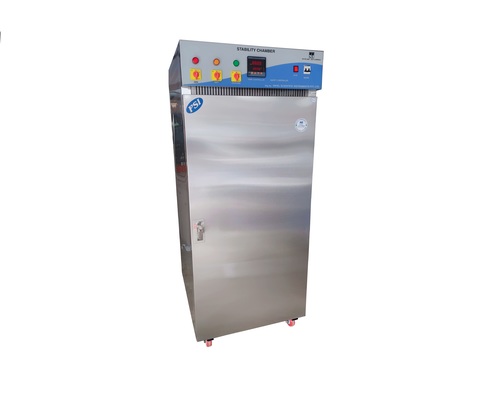

Stability and Humidity Chamber

Stability and Humidity Chamber
Stability and Humidity Chamber
Send Inquiry
Product Code : PSI - 033
Brand Name : PSI
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Piece/Pieces
Product Description
Features:
  • Double walled in construction, gap between the two walls filled with high grade Puff insulation.
  • Full-length inner glass/acrylic door with Lock & Key arrangement and outside metal door with Door Gasket and S. S. lock with keys.
  • Inner Chamber S.S. 304 & Outer Chamber M.S. Powder Coating.
  • Removable Stainless Steel Rod type trays at variable distance are provided 2 pcs.
  • Unit consists of main switch, fuse, and pilot lamps for all controls.
  • Microprocessor based Digital LED PID controller with direct display of Process Values of Temperature & Humidity.
  • Temp. Sensor PT-100 (RTD)
  • Safety Thermostats for over shot Temp. Safety device.
  • Make Humidity Capacitive type Sensor for greater Accuracy.
  • Forced air circulation for uniform temperature.
  • Cooling by hermetically sealed compressors utilizing R-134A an eco-friendly refrigerant coupled with evaporation coil and condenser, safeguarded by time delay circuit.
  • Redundant high temperature safety system automatically cuts-off power to heaters if temperature exceeds 70°c incorporated in the Units.
  • Provided with castor wheels for easy movability.
  • Electrically operated on 230 V AC, 50 Hz.
Technical Specifications:
  • Material of Construction : Inside S.S. & Outside S.S.
  • Temp. Range : 100C to 600C
  • Humidity Range : 40% RH to 98% RH
  • Low temp. Range: -250C/-150C/-100C & 00C & 35% RH on request
  • Accuracy Temp.:  / RH  : + 0.20C & + 3% RH
Trade Information
  • Payment Terms
  • Cash Against Delivery (CAD), Cheque, Others, Cash on Delivery (COD), Cash in Advance (CID)
  • Sample Available
  • Yes
  • Sample Policy
  • If order is confirmed we will reimburse the sample cost
  • Packaging Details
  • Plastic Wrapping and Wooden packing
  • Main Export Market(s)
  • Asia
  • Main Domestic Market
  • Maharashtra, Gujarat, Madhya Pradesh, Rajasthan
  • Certifications
  • ISO 9001 : 2015
