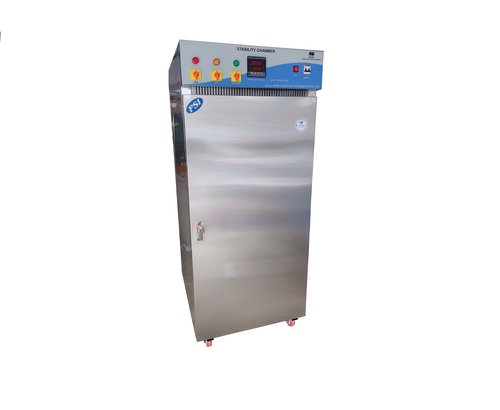

Stability & Humidity Chambers

Stability & Humidity Chambers
Stability & Humidity Chambers
Product Code : PSI - 033
Brand Name : PSI
Trade Information
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Piece/Pieces
  • Payment Terms
  • Cash on Delivery (COD), Cash in Advance (CID)
  • Sample Available
  • Yes
  • Sample Policy
  • If order is confirmed we will reimburse the sample cost
  • Packaging Details
  • Plastic Wrapping and Wooden packing
  • Main Export Market(s)
  • Asia
  • Main Domestic Market
  • Central India, North India, East India
  • Certifications
  • ISO 9001 : 2015
Product Description

PSI-033           Humidity Chamber  (Inner S.S. Outer M.S.)



  • Double walled in construction, gap between the two walls filled with high grade Puff insulation.
  • Full-length inner glass/acrylic door with Lock & Key arrangement and outside metal door with Door Gasket and S. S. lock with keys.
  • Inner Chamber S.S. 304 & Outer Chamber M.S. Powder Coating.
  • Removable Stainless Steel Rod type trays at variable distance are provided 2 pcs.
  • Unit consists of main switch, fuse, and pilot lamps for all controls.
  • Microprocessor based Digital LED PID controller with direct display of Process Values of Temperature & Humidity.
  • Temp. Sensor PT-100 (RTD)
  • Safety Thermostats for over shot Temp. Safety device.
  • Make Humidity Capacitive type Sensor for greater Accuracy.
  • Forced air circulation for uniform temperature.
  • Cooling by hermetically sealed compressors utilizing R-134A an eco-friendly refrigerant coupled with evaporation coil and condenser, safeguarded by time delay circuit.
  • Redundant high temperature safety system automatically cuts-off power to heaters if temperature exceeds 70°c incorporated in the Units.
  • Provided with castor wheels for easy movability.
  • Electrically operated on 230 V AC, 50 Hz.



TEMPERATURE RANGE

10°c to 60°c

HUMIDITY RANGE

40% to 95% RH

TEMPERATURE ACCURACY

± 0.5°c

HUMIDITY ACCURACY

±  2% RH

TEMPERATURE UNIFORMITY

± 1° c

HUMIDITY UNIFORMITY

±  3% RH

Size Inch.

18 x 18 x 18 (90ltr)

20 x 20 x 28(175ltr)

22 x 22 x 36(280ltr)





Microprocessor Auto Tune PID Controller with Data Login System with Pen Drive
