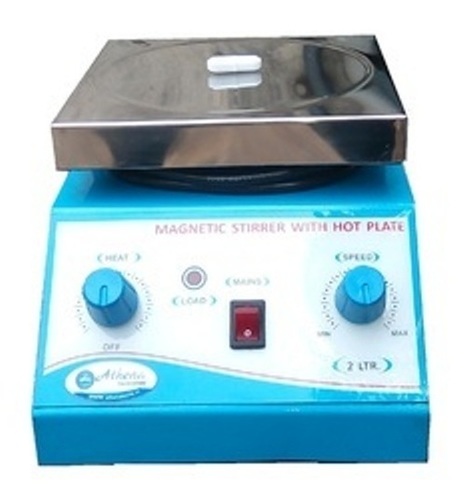

Magnetic Stirrer with Hot Plate

Name: Magnetic Stirrer with Hot Plate
Brand: PATEL SCIENTIFIC INSTRUMENTS PVT. LTD.
Price: 4900 INR
Availability: InStock

Price 4900 INR/ Unit

Get a Price/Quote

MOQ : 1 Piece

Magnetic Stirrer with Hot Plate Specification

Shape
Rectangular

Accuracy
2C (temperature), 5 rpm (speed)

Display Type
Analog scale

Control Type
Analog Speed & Temperature Control

Features
Speed control, adjustable heating, quiet operation, corrosion resistant plate

Temperature Resistance
Room Temp. to 340C

Heating Capacity
500 Watts

Speed Range
100-1500 rpm

Power Supply
AC 220V, 50 Hz

Type
Magnetic Stirrer with Hot Plate

Dimension (L*W*H)
Approx 270 x 160 x 170 mm

Equipment Type
Laboratory Hotplate Magnetic Stirrer

Equipment Materials
MS powder coated body with ceramic coated plate

Power
500 W

Voltage
220 V / 50 Hz

Material
Metal Body, Ceramic Top

Application
Laboratory mixing, heating and stirring applications

Capacity (Ltr)
2 litres

Top Plate Size
150mm x 150mm

Cooling System
Passive Cooling

Speed Control
Continuous Adjustable

Stir Bar Compatibility
Standard PTFE Stir Bars

Heating Indicator
Pilot Lamp

Stirring Mechanism
Magnetic Coupling

Weight
3.5 kg

Max Load
2.5 kg

Overheat Protection
Integrated Safety Cutoff

Magnetic Stirrer with Hot Plate Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
10 Pieces Per Month

Delivery Time
1 Week

Sample Available
Yes

Sample Policy
If order is confirmed we will reimburse the sample cost

Packaging Details
Plastic packing and wooden packing

Main Export Market(s)
Asia

Main Domestic Market
Central India, North India, East India

Certifications
ISO 9001 : 2015

About Magnetic Stirrer with Hot Plate

PSIintroduced worlds best Magnetic-stirrers. This group of magnetic stirrers is similar to the conventional magnetic stirrers but have additional hot plate to achieve heating of solutions to be stirred. The heating is controlled by energy regulator, which ensures regulation at any desired percentage of the capacity of heater.

Precision Stirring and Heating in Laboratories

Designed for laboratory applications, this magnetic stirrer with hot plate combines efficient mixing and controlled heating, offering precise analog control for both speed and temperature. The top plate features a 150mm x 150mm ceramic coating, ensuring chemical resistance and easy cleaning, making it suitable for a broad spectrum of solutions.

Durable Design and Safe Operation

Built with a MS powder coated body and a corrosion-resistant ceramic top, the unit provides longevity even in demanding environments. Integrated overheat protection and passive cooling ensure operational safety and device durability during extended use.

Versatile Laboratory Applications

Supporting up to 2 litres and 2.5 kg load, this stirrer is compatible with standard PTFE stir bars, making it ideal for laboratory mixing, heating, and stirring tasks across research, academic, and industrial settings.

FAQs of Magnetic Stirrer with Hot Plate:

Q: How do I operate the magnetic stirrer with hot plate safely?

A: Always place the unit on a stable, heat-resistant surface. Connect to a 220V, 50 Hz power supply. Adjust speed and temperature via the analog controls, observing the pilot lamp for heating status, and do not exceed the 2.5 kg load or 2-litre capacity. Overheat protection helps prevent accidental overheating.

Q: What types of stir bars are compatible with this equipment?

A: This magnetic stirrer is compatible with standard PTFE (polytetrafluoroethylene) stir bars, which are widely used in laboratory settings due to their chemical resistance and efficiency in mixing.

Q: When should the integrated overheat protection feature activate?

A: The integrated safety cutoff activates if the plate temperature exceeds the safe limit (up to 340C), automatically stopping the heating to protect both the sample and device from excessive temperatures.

Q: Where is this magnetic stirrer with hot plate typically used?

A: It is commonly used in academic, research, and industrial laboratories across India for mixing, heating, and stirring a variety of chemical solutions and biological samples.

Q: What is the benefit of the passive cooling system?

A: The passive cooling system operates silently and efficiently, dissipating heat without the need for additional fans or moving parts, thus reducing maintenance and extending the lifespan of the device.

Q: How do I know if the hot plate is heating?

A: A pilot lamp illuminates when heating is active, providing a clear visual indicator that the hot plate is in operation and caution is required.
